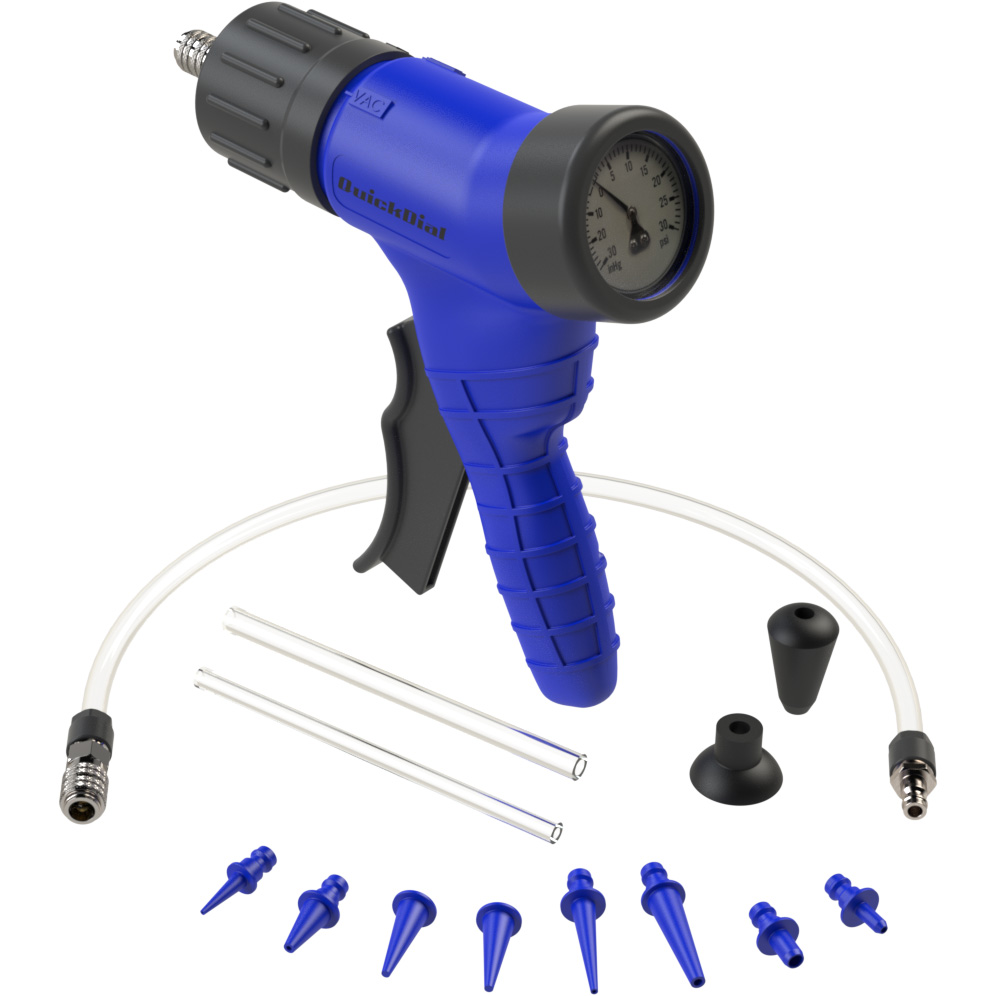

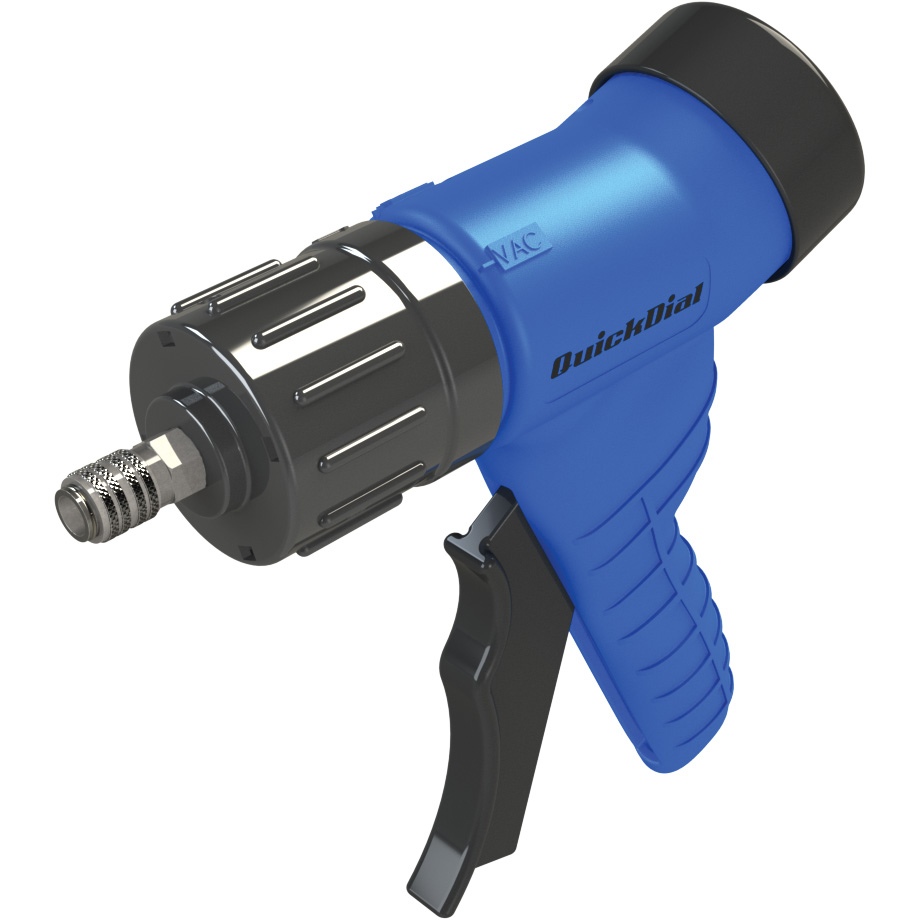

2-Way Diagnostic Pump

Description

Function: Examples of use

Pressure Mode

• Monitor turbo charger boost pressure
• Test and adjust turbo charger wastegate actuators
• Test pressure operated central locking systems
• Test fuel tank vent valves
• Test one way valves
• Diagnose small engine faults

Vacuum Mode

• Test EGR valve
• Test fuel pressure regulator
• Test map sensor
• Test thermal vacuum switches
• Test electric vacuum switches
• Test one way valves
• Test HVAC valves
• Test automatic transmission modulator valve
• Test central locking systems

Features

• High quality diagnostic tool
• 2-Way pressure and vacuum test functions
• Patented design
• Intuitive rotary dial mode switch
• Pistol grip with lever
• High volume efficiency in both pressure and vacuum modes
• Manufactured from fiber reinforced composite materials
• Very high strength
• High impact resistance
• Excellent chemical resistance
• Integrated rear mount gauge
• Optimum viewing angle
• Maximum impact protection
• High quality silicon material hoses with quick couple hose fittings
• Quick hose interchange
• No leaks under vacuum or pressure
• Custom blow mold storage case

Specifications

• Maximum Pressure 30 psi
• Maximum Vacuum 28 in Hg
• Stroke Volume 1 Cubic Inch (16cc)
• Pump Weight 20.1 ounce
